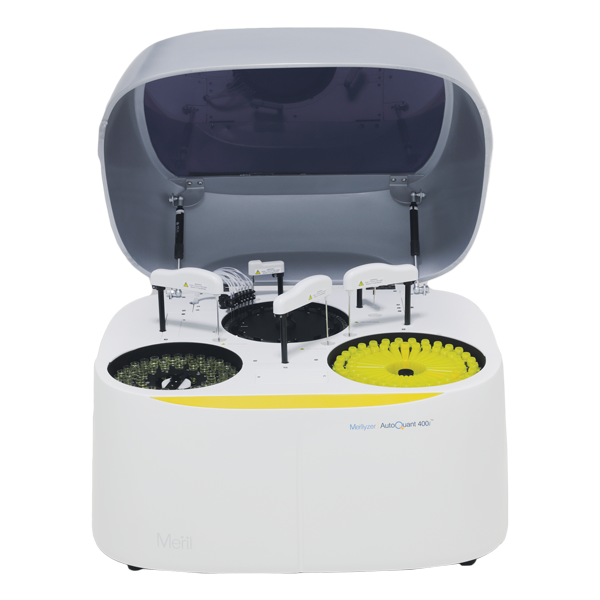

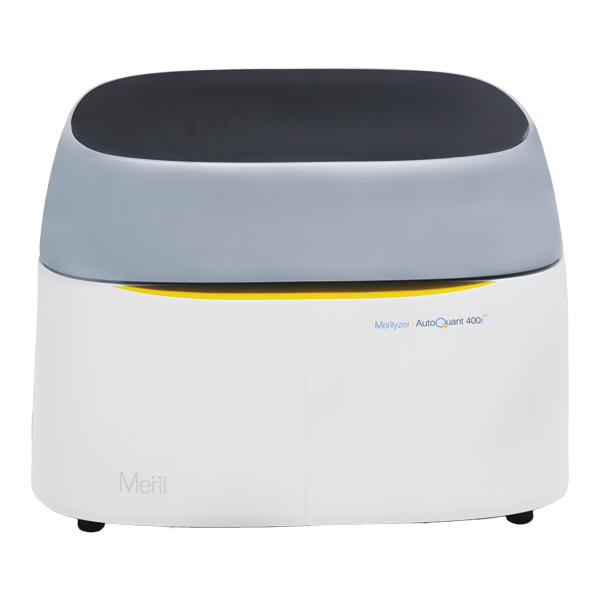

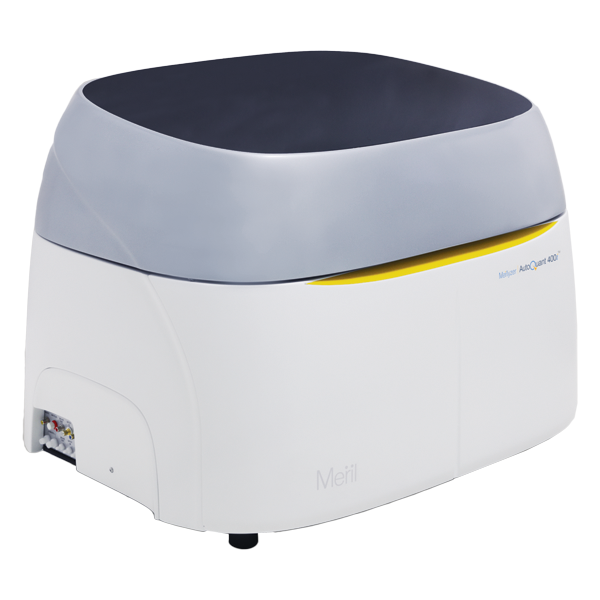

AutoQuant 400 Supremus
Product Overview- Next-generation automated biochemistry system to meet the needs of high-end laboratories
- Closed system reagents with calibrators and controls with viable software
- Capability of handling a workload of a medium to high, throughput laboratory
- Includes 400 tests/hour throughputs
- Potential to provide cost-effective solutions for day-to-day as well as specific testing parameters
-
Features
-
Video
-
Open Reagents
-
System Packs
-
FAQs
-
- AQ 400i is discrete, open, automated, random access, Fully Automated analyzer throughput 400 tests/hour, Optional ISE 520 tests/hour through put
- Analysis Modes: End Point, Fixed Time (2-point), Kinetic Rate-A, Kinetic Rate-B
- Facility of STAT function from any free position
- Sample Positions: Maximum 75 positions with bar code identification
- 60 Reagent positions maintained by water cooled Refrigeration Unit with bar code identification
- 80 Semi Disposable cuvettes with cuvette check function before testing
- Total 9 static filters (340, 405, 450, 510, 546, 578, 620, 670, 700 nm)
- Halogen Tungsten lamp with fibre optics
- Calibration Points: K-Factor, Linear (one, two point and multipoint), Logit-log, Spline, Exponential, Polynomial (second, third, and fourth order)
- Option of three different washes for forbidden pairs to minimize the carry over
- User defined Reflex Testing
- Data storage capacity of 1,000,000 test results & reaction curve 40,000 tests
- Laundry System with 7-step automatic washing
- 2 probes for Reagent (1 each for Reagent 1 & Reagent 2) and one probe for sample
- 2 Stirrers for mixing of solutions
- Low water consumption of 6-8 litres / hour
- Easy-to-use Windows based software (Windows XP)
-
-
-
-
-
What is the through put?
AutoQuant 400i/Supremus: 400 tests/hour, with ISE (optional): 520 tests/hour.
-
How many reaction positions?
Reaction positions are 80.
-
How many probes are present in AutoQuant 400i/AutoQuant 400 Supremus?
Total 3 probes: one for sample, 2nd for Reagent 1 & 3rd for Reagent 3.
-
How many stirrers are present in AutoQuant 400i/AutoQuant 400 Supremus?
Two stirrers for mixing of working solutions.
-
How many trays are present in AutoQuant 400i/AutoQuant 400 Supremus?
Total 3 trays: Reagent tray, Sample tray & Reaction cuvettes.
-
How many Reagents positions & sample positions?
AQ 400i: 60 Reagent positions (R1 & R2) & 75 sample positions.
-
How much water consumption?
6.5 to 8 litres for AutoQuant 400i & AutoQuant 400 Supremus.
-
Can Turbidimetry Immunoassay Assay tests be performed?
Yes as per the protocol.
-
What is maintenance?
We provide four Quarterly preventive maintenance service. All other break-downs will be attended in minimum TAT.
-
How often we should run the control?
As per GLP, the controls should be run at the start of the day. As per NABL, depending on the number of samples, each Control should be run twice or thrice a day.
-
What is the cuvette material?
PMMA, (Poly methyl methacrylate). Highly transparent, Good rigidity, Dimensionally stable.
-
What is the cuvette life?
Depends on many factors like number of tests, type of tests, wash maintenance & laboratory environment. Approx. 500-700 tests/cuvette.
-
What is the advantage over hard glass cuvette?
Hard glass cuvettes are very expensive hence accidental damage of cuvettes & mechanism wear & tear would be high for glass cuvettes, where else these are manageable with affordable cost of cuvettes.
-
What is the bulb life?
Approx. > 1000 working hours.
-
Can primary tubes be used for samples?
Yes can be used with good serum quantity.
-
What is Service TAT & application support?
Average 24 hours within HQ & 48 hours outstation.
-
What is the CPRT (Cost per reportable test) ?
CPRT is actual price per test after excluding the calibration cost, considering dead volume, chase volume etc.
-
What is CPT (Cost per test)?
CPT is price per test is the price of the volume of reagent utilized for a particular test.
-
