Hematology

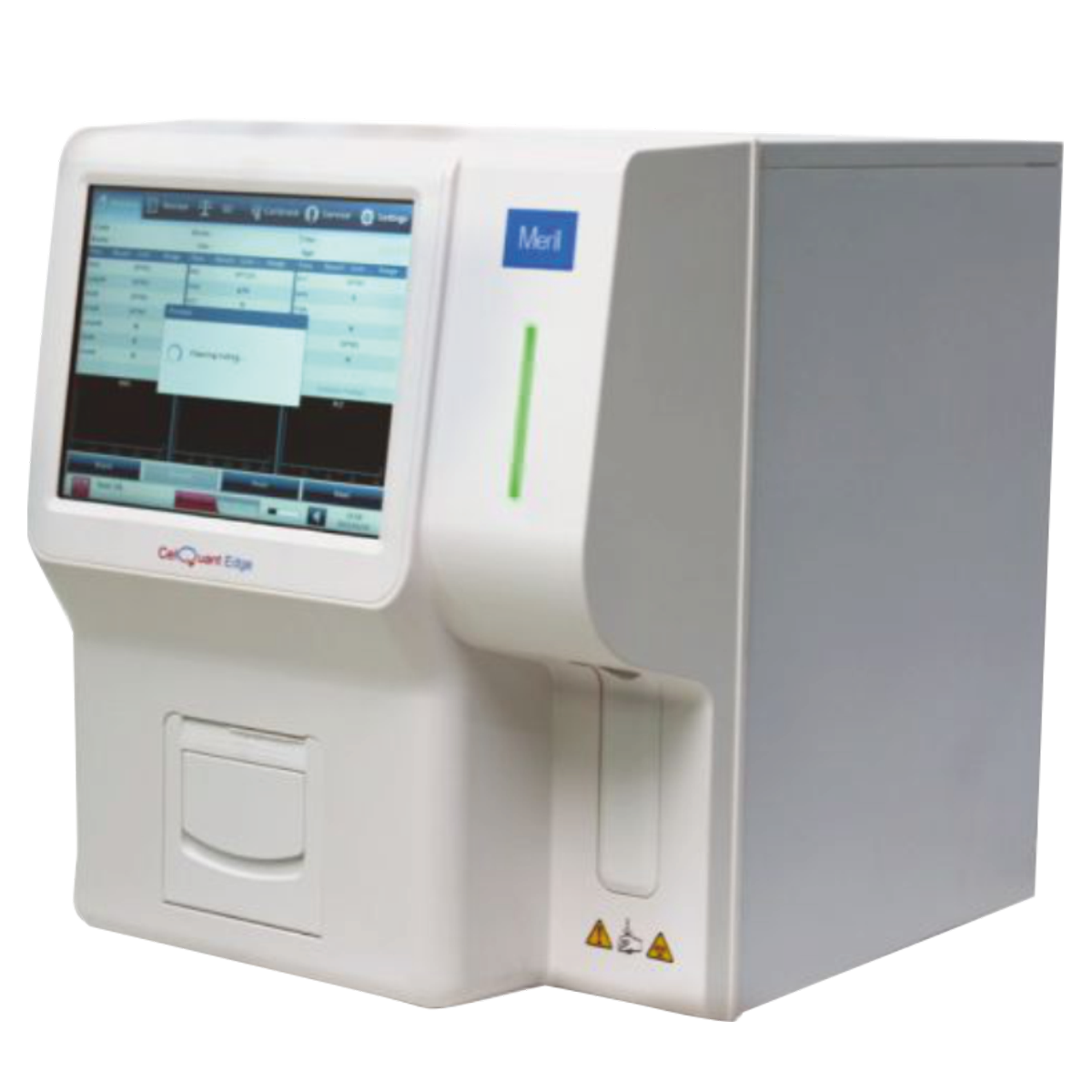

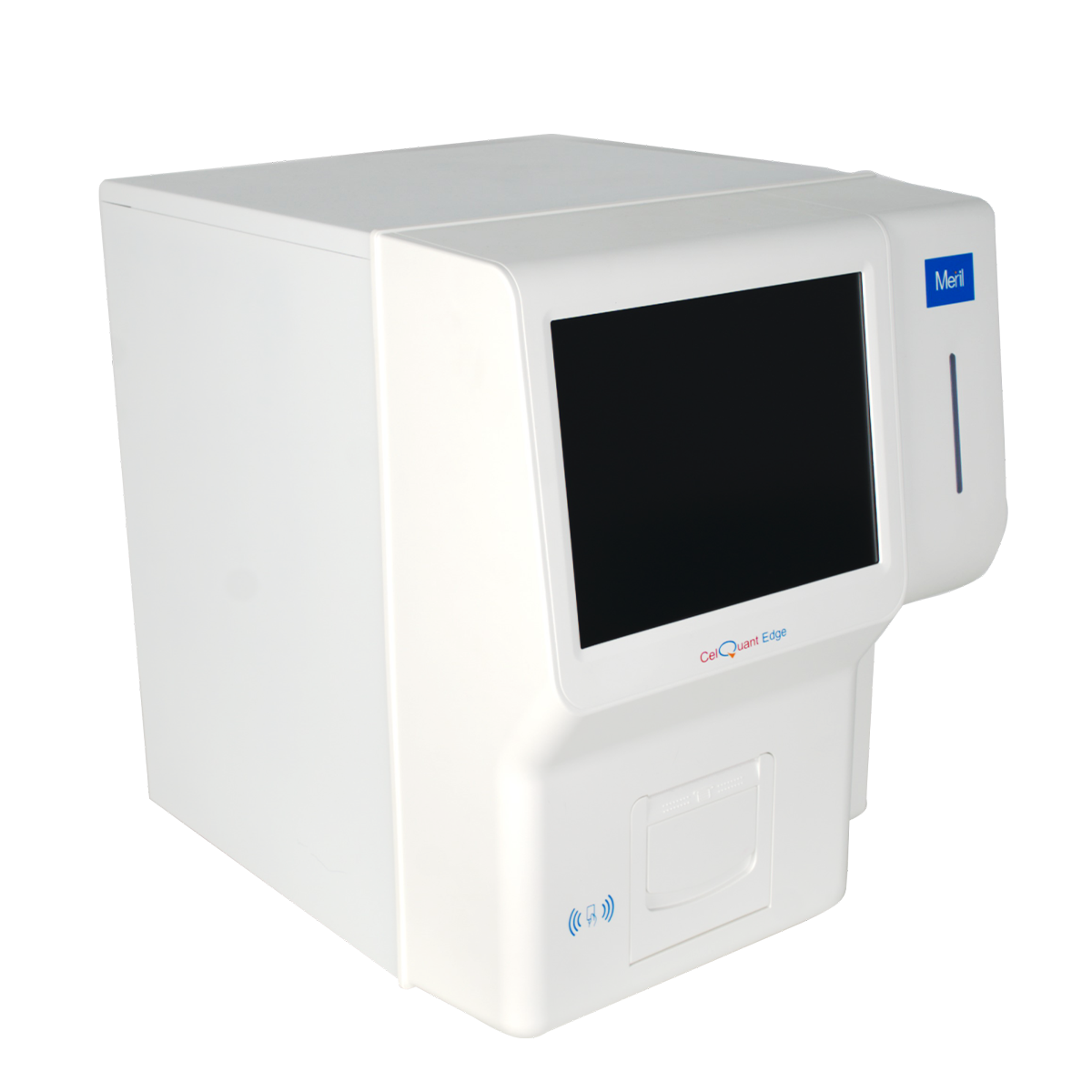

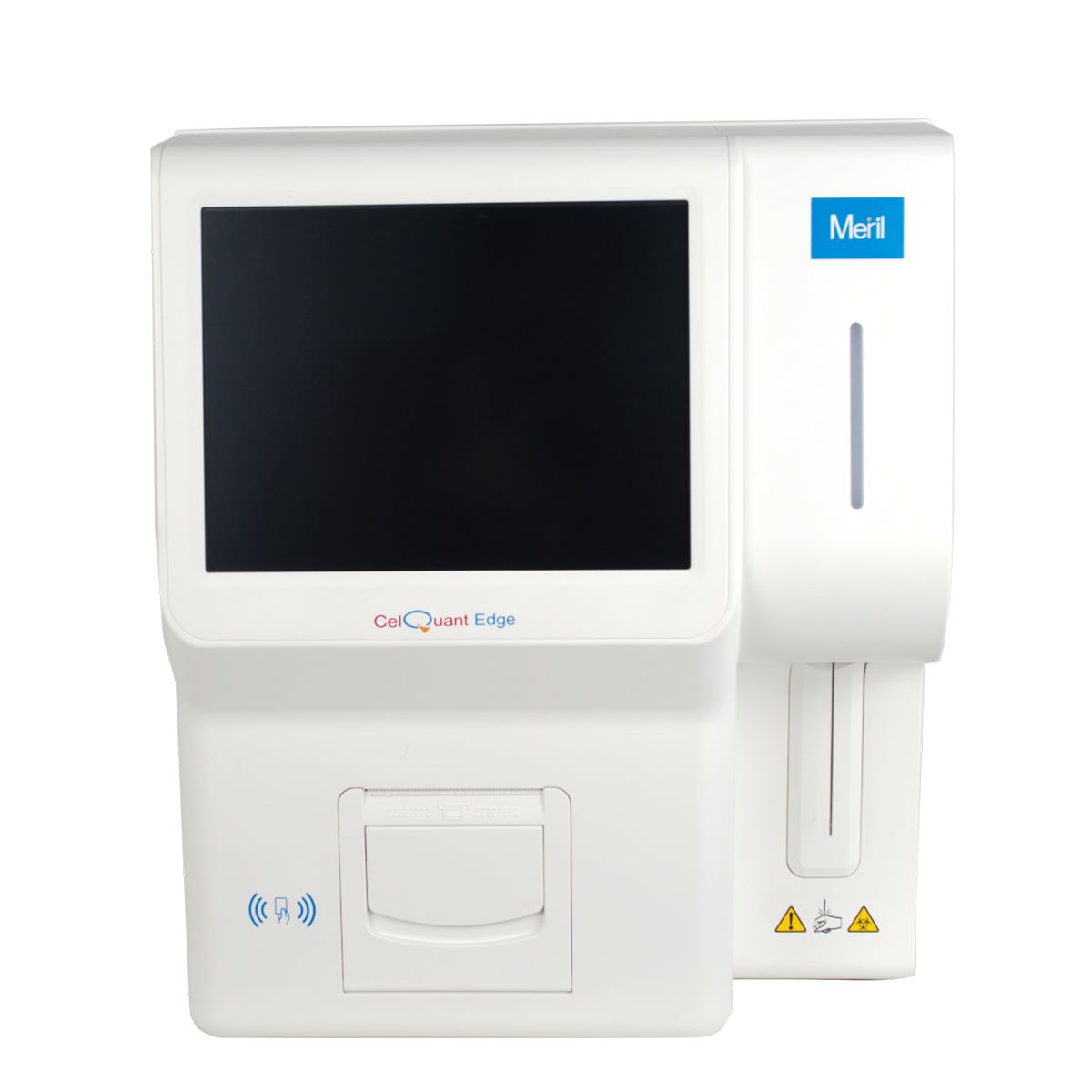

Merilyzer | CelQuant Edge®
Product Overview- Computerized, highly specialized analyzer
- Automated machine that help count the number of different kinds of blood cells in human blood.
- Automated 3 Part Diiferential dual chamber Analyzer with 21 Parameters and 3 histograms for WBC, RBC and PLT.
- Throughput 60 test/hr.
- 14 ul sample aspiration volume
- Wider linearity range & excellent repeatability
- Full Connectivity: Lan port , RS-232 port , 4 USB ports
-
Features
-
Video
-
Open Reagents
-
System Packs
-
FAQs
-
- 10.4 inch true color TFT LCD & touch screen, more visible, Minimize the number of interface layers, pop-up soft keyboard, easy to operate.
- Several languages available, can switch language online
- Normocytic and normochromic anemia, Macrocytic and normochromic anemia, Microcytic hypochromic anemia, Microcytic anemia
- Text of alarm information is clearer than alarm character provided by traditional 3-part analyzer
- Automatically re-count after unclogging treatment while a counting hole is clogged, avoid re-collecting blood
- Include 9 QC files, automatically draw quality control chart and provide the average, SD, CV
- Support manual and automatic calibration
- Sample volume : Whole Blood: ≤ 14 μL and Pre-diluted Blood: ≤ 20 μL
- Back flushing, soaking and burning. Automatic unclogging treatment before and after the sample analysis
- Test speed of 60 samples / hour
-
-
-
-
-
How many Reportable parameters are available in CelQuant Edge?
Total 21 Parameters and 3 histograms are available in CelQuant Edge
-
What are the Reagents and pack size available with CelQuant Edge?
Blood Diluent-20L, Cell Lyse-500mL, Rinse -10L, PROBE CLEANER-50mL, Enz Cleaner-70mL
-
What is the display size of CelQuant Edge?
10.4 inch TFT LCD Display which gives a clear image & makes interpretation easy
-
How many USB data ports are there for CelQuant Edge?
4 USB ports
-
Sample volume of CelQuant Edge?
14μL for whole blood and 20μL for Pre-diluted blood
-
What is the on-board memory storage of CelQuant Edge?
The Onboard storage of CelQuant Edge is more than 10,000 patient result memory
-
