LATITUD FEMORAL HEAD

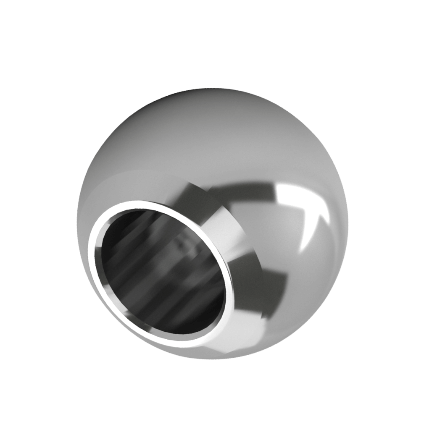

Modular Femoral Head has following basic design features:
1. Modular Femoral Head is manufactured from Cobalt-Chromium alloy (CoCr) conforming to ASTM F1537-11: “Standard Specification for Wrought Cobalt - 28Chromium-6Molybdenum Alloys for Surgical Implants.” and ISO 5832-12:2007: “Implants for surgery-metallic materials-part 12: Wrought Cobalt-Chromium-Molybdenum alloy” (Co-Cr-Mo).
2. Modular Femoral Head is intended to be used with uncemented stem or cemented stem through 12/14 taper connection and articulate with dedicated range of modular liner or bipolar monoblock shell.
3. Modular Femoral Head is available in different sizes based on outer diameter ranging from 22 to 40 mm with different offsets viz. +0.0, +3.5, -3.5, +4.0, -4.0, +7.0.
LATITUD FEMORAL HEAD FOR Total Hip Replacement
Total Hip replacement is a surgical procedure in which the hip joint is replaced by a prosthetic implant. The aim of hip replacement surgery is to relieve hip pain and increase hip function. It is done when there is no other treatment option for relieving painful hip joints. Know more here
Size Chart
| Part No. | Description | Size | ||
|---|---|---|---|---|
| CoCr | HNSS | SS 316 L | ||
| HDAA-22/00 | HDAM-22/00 | HDAK-22/00 | Modular Head | 22 +0 |
| HDAA-22/35+ | HDAM-22/35+ | HDAK-22/35+ | Modular Head | 22 +3.5 |
| HDAA-28/00 | HDAM-28/00 | HDAK-28/00 | Modular Head | 28 +0 |
| HDAA-28/35+ | HDAM-28/35+ | HDAK-28/35+ | Modular Head | 28 +3.5 |
| HDAA-28/70+ | HDAM-28/70+ | HDAK-28/70+ | Modular Head | 28 +7 |
| HDAA-28/35- | HDAM-28/35- | HDAK-28/35- | Modular Head | 28 -3.5 |
| HDAA-32/00 | HDAM-32/00 | HDAK-32/00 | Modular Head | 32 +0 |
| HDAA-32/40+ | HDAM-32/40+ | HDAK-32/40+ | Modular Head | 32 +4 |
| HDAA-32/70+ | HDAM-32/70+ | HDAK-32/70+ | Modular Head | 32 +7 |
| HDAA-32/40- | HDAM-32/40- | HDAK-32/40- | Modular Head | 32 -4 |
| HDAA-36/00 | HDAM-36/00 | HDAK-36/00 | Modular Head | 36 +0 |
| HDAA-36/40+ | HDAM-36/40+ | HDAK-36/40+ | Modular Head | 36 +4 |
| HDAA-36/70+ | HDAM-36/70+ | HDAK-36/70+ | Modular Head | 36 +7 |
| HDAA-36/40- | HDAM-36/40- | HDAK-36/40- | Modular Head | 36 -4 |
| HDAA-40/00 | HDAM-40/00 | HDAK-40/00 | Modular Head | 40 +0 |
| HDAA-40/40+ | HDAM-40/40+ | HDAK-40/40+ | Modular Head | 40 +4 |
| HDAA-40/70+ | HDAM-40/70+ | HDAK-40/70+ | Modular Head | 40 +7 |
| HDAA-40/40- | HDAM-40/40- | HDAK-40/40- | Modular Head | 40 -4 |
Clinical Data
Product IFU
Note: IFU will be displayed after MDR Certification
