KET SS HUMERUS NAIL SYSTEM
Anatomical Implants

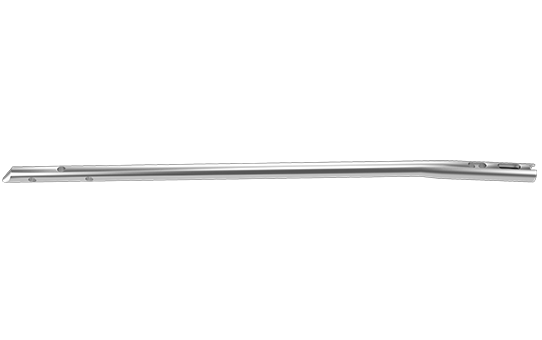

The Humeral Nail has been designed for antegrade insertion into the proximal humeral shaft. It can be used universally for the left and right humerus. The standardised proximal spiral-blade locking ensures sufficient anchoring even in an osteoporotic humeral head.
Size Chart
| AVAILABLE IN | DIAMETER 6, 6.7 & 7 |
|---|---|
| Length ranging from | 205 to 295 |
Indication
Humeral shaft fractures to approximately 5 cm proximal of the olecranon fossa in
- Closed epiphyseal cartilages:
- Stable or unstable fresh fractures
- Pathologic fractures
- Refractures
- delayed unions and pseudarthroses
Size Chart
| Part No. Titanium | Description | Size | |
|---|---|---|---|
| Hole /Dia. | Length | ||
| MT-NS2160205 | 6.0mm SS Humeral Nail Unreamed 205mm Length | 6.0 | 205mm |
| MT-NS2167205 | 6.7mm SS Humeral Nail Unreamed 205mm Length | 6.7 | 205mm |
| MT-NS2175205 | 7.5mm SS Humeral Nail Unreamed 205mm Length | 7.5 | 205mm |
| MT-NS2160220 | 6.0mm SS Humeral Nail Unreamed 220mm Length | 6.0 | 220mm |
| MT-NS2167220 | 6.7mm SS Humeral Nail Unreamed 220mm Length | 6.7 | 220mm |
| MT-NS2175220 | 7.5mm SS Humeral Nail Unreamed 220mm Length | 7.5 | 220mm |
| MT-NS2160230 | 6.0mm SS Humeral Nail Unreamed 230mm Length | 6.0 | 230mm |
| MT-NS2167230 | 6.7mm SS Humeral Nail Unreamed 230mm Length | 6.7 | 230mm |
| MT-NS2175230 | 7.5mm SS Humeral Nail Unreamed 230mm Length | 7.5 | 230mm |
| MT-NS2160240 | 6.0mm SS Humeral Nail Unreamed 240mm Length | 6.0 | 240mm |
| MT-NS2167240 | 6.7mm SS Humeral Nail Unreamed 240mm Length | 6.7 | 240mm |
| MT-NS2175240 | 7.5mm SS Humeral Nail Unreamed 240mm Length | 7.5 | 240mm |
| MT-NS2160250 | 6.0mm SS Humeral Nail Unreamed 250mm Length | 6.0 | 250mm |
| MT-NS2167250 | 6.7mm SS Humeral Nail Unreamed 250mm Length | 6.7 | 250mm |
| MT-NS2175250 | 7.5mm SS Humeral Nail Unreamed 250mm Length | 7.5 | 250mm |
| MT-NS2160260 | 6.0mm SS Humeral Nail Unreamed 260mm Length | 6.0 | 260mm |
| MT-NS2167260 | 6.7mm SS Humeral Nail Unreamed 260mm Length | 6.7 | 260mm |
| MT-NS2175260 | 7.5mm SS Humeral Nail Unreamed 260mm Length | 7.5 | 260mm |
| MT-NS2160270 | 6.0mm SS Humeral Nail Unreamed 270mm Length | 6.0 | 270mm |
| MT-NS2167270 | 6.7mm SS Humeral Nail Unreamed 270mm Length | 6.7 | 270mm |
| MT-NS2175270 | 7.5mm SS Humeral Nail Unreamed 270mm Length | 7.5 | 270mm |
| MT-NS2160280 | 6.0mm SS Humeral Nail Unreamed 280mm Length | 6.0 | 280mm |
| MT-NS2167280 | 6.7mm SS Humeral Nail Unreamed 280mm Length | 6.7 | 280mm |
| MT-NS2175280 | 7.5mm SS Humeral Nail Unreamed 280mm Length | 7.5 | 280mm |
| MT-NS2160295 | 6.0mm SS Humeral Nail Unreamed 295mm Length | 6.0 | 295mm |
| MT-NS2167295 | 6.7mm SS Humeral Nail Unreamed 295mm Length | 6.7 | 295mm |
| MT-NS2175295 | 7.5mm SS Humeral Nail Unreamed 295mm Length | 7.5 | 295mm |
| MT-SS8229012 | 2.9mm Locking Bolt Self Tapping (SS) 12mm Length | 2.9 | 12mm |
| MT-SS8229014 | 2.9mm Locking Bolt Self Tapping (SS) 14mm Length | 2.9 | 14mm |
| MT-SS8229016 | 2.9mm Locking Bolt Self Tapping (SS) 16mm Length | 2.9 | 16mm |
| MT-SS8229018 | 2.9mm Locking Bolt Self Tapping (SS) 18mm Length | 2.9 | 18mm |
| MT-SS8229020 | 2.9mm Locking Bolt Self Tapping (SS) 20mm Length | 2.9 | 20mm |
| MT-SS8229022 | 2.9mm Locking Bolt Self Tapping (SS) 22mm Length | 2.9 | 22mm |
| MT-SS8229024 | 2.9mm Locking Bolt Self Tapping (SS) 24mm Length | 2.9 | 24mm |
| MT-SS8229026 | 2.9mm Locking Bolt Self Tapping (SS) 26mm Length | 2.9 | 26mm |
| MT-SS8229028 | 2.9mm Locking Bolt Self Tapping (SS) 28mm Length | 2.9 | 28mm |
| MT-SS8229030 | 2.9mm Locking Bolt Self Tapping (SS) 30mm Length | 2.9 | 30mm |
| MT-SS8334018 | 3.4mm Locking Bolt Self Tapping (SS) 18mm Length | 3.4 | 18mm |
| MT-SS8334020 | 3.4mm Locking Bolt Self Tapping (SS) 20mm Length | 3.4 | 20mm |
| MT-SS8334022 | 3.4mm Locking Bolt Self Tapping (SS) 22mm Length | 3.4 | 22mm |
| MT-SS8334024 | 3.4mm Locking Bolt Self Tapping (SS) 24mm Length | 3.4 | 24mm |
| MT-SS8334026 | 3.4mm Locking Bolt Self Tapping (SS) 26mm Length | 3.4 | 26mm |
| MT-SS8334028 | 3.4mm Locking Bolt Self Tapping (SS) 28mm Length | 3.4 | 28mm |
| MT-SS8334030 | 3.4mm Locking Bolt Self Tapping (SS) 30mm Length | 3.4 | 30mm |
| MT-SS8334032 | 3.4mm Locking Bolt Self Tapping (SS) 32mm Length | 3.4 | 32mm |
| MT-SS8334034 | 3.4mm Locking Bolt Self Tapping (SS) 34mm Length | 3.4 | 34mm |
| MT-SS8334036 | 3.4mm Locking Bolt Self Tapping (SS) 36mm Length | 3.4 | 36mm |
| MT-SS8334038 | 3.4mm Locking Bolt Self Tapping (SS) 38mm Length | 3.4 | 38mm |
| MT-SS8334040 | 3.4mm Locking Bolt Self Tapping (SS) 40mm Length | 3.4 | 40mm |
| MT-ES1590000 | SHNU Nail Cap | - | - |
Clinical Data
Product IFU
Note: IFU will be displayed after MDR Certification
