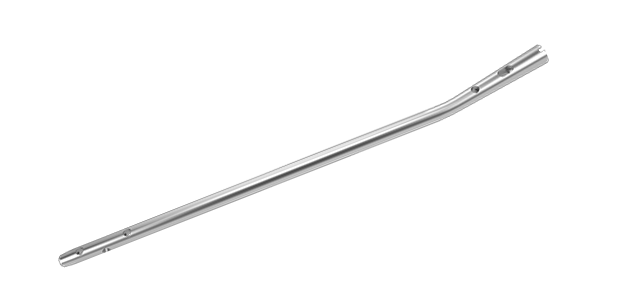

KET SS SHAFT FEMUR (SSFN)
Anatomical Implants
- Static and dynamic transverse locking holes proximally.
- Two static transverse locking holes distally.
- 1.5 m radius of curvature to approximate the average anatomic curve of the femur
Size Chart
Available in:
Diameters : 9mm,10mm,11mm and 12mm
Length : 340mm to 440mm
Indication
Femur fractures with bony support (stable fracture in the middle third of the femur, with or without locking):
- Transverse fractures
- Short oblique fractures
- Pseudarthroses
Femur fractures without bony support (unstable fracture in 60% of the femoral length):
- Fractures near the metaphysis
- Long torsional fractures
- Segmental fractures
- Comminuted fractures
- Fractures with bone defects
Size Chart
| Part No. Titanium | Description | Size | |
|---|---|---|---|
| Hole /Dia. | Length | ||
| MT-NS1909340 | 9.0mm SS Shaft Femur Nail Cannulated 340mm Length | 9.0 | 340 |
| MT-NS1910340 | 10.0mm SS Shaft Femur Nail Cannulated 340mm Length | 10.0 | 340 |
| MT-NS1911340 | 11.0mm SS Shaft Femur Nail Cannulated 340mm Length | 11.0 | 340 |
| MT-NS1912340 | 12.0mm SS Shaft Femur Nail Cannulated 340mm Length | 12.0 | 340 |
| MT-NS1909360 | 9.0mm SS Shaft Femur Nail Cannulated 360mm Length | 9.0 | 360 |
| MT-NS1910360 | 10.0mm SS Shaft Femur Nail Cannulated 360mm Length | 10.0 | 360 |
| MT-NS1911360 | 11.0mm SS Shaft Femur Nail Cannulated 360mm Length | 11.0 | 360 |
| MT-NS1912360 | 12.0mm SS Shaft Femur Nail Cannulated 360mm Length | 12.0 | 360 |
| MT-NS1909380 | 9.0mm SS Shaft Femur Nail Cannulated 380mm Length | 9.0 | 380 |
| MT-NS1910380 | 10.0mm SS Shaft Femur Nail Cannulated 380mm Length | 10.0 | 380 |
| MT-NS1911380 | 11.0mm SS Shaft Femur Nail Cannulated 380mm Length | 11.0 | 380 |
| MT-NS1912380 | 12.0mm SS Shaft Femur Nail Cannulated 380mm Length | 12.0 | 380 |
| MT-NS1909400 | 9.0mm SS Shaft Femur Nail Cannulated 400mm Length | 9.0 | 400 |
| MT-NS1910400 | 10.0mm SS Shaft Femur Nail Cannulated 400mm Length | 10.0 | 400 |
| MT-NS1911400 | 11.0mm SS Shaft Femur Nail Cannulated 400mm Length | 11.0 | 400 |
| MT-NS1912400 | 12.0mm SS Shaft Femur Nail Cannulated 400mm Length | 12.0 | 400 |
| MT-NS1909420 | 9.0mm SS Shaft Femur Nail Cannulated 420mm Length | 9.0 | 420 |
| MT-NS1910420 | 10.0mm SS Shaft Femur Nail Cannulated 420mm Length | 10.0 | 420 |
| MT-NS1911420 | 11.0mm SS Shaft Femur Nail Cannulated 420mm Length | 11.0 | 420 |
| MT-NS1912420 | 12.0mm SS Shaft Femur Nail Cannulated 420mm Length | 12.0 | 420 |
| MT-NS1909440 | 9.0mm SS Shaft Femur Nail Cannulated 440mm Length | 9.0 | 440 |
| MT-NS1910440 | 10.0mm SS Shaft Femur Nail Cannulated 440mm Length | 10.0 | 440 |
| MT-NS1911440 | 11.0mm SS Shaft Femur Nail Cannulated 440mm Length | 11.0 | 440 |
| MT-NS1912440 | 12.0mm SS Shaft Femur Nail Cannulated 440mm Length | 12.0 | 440 |
| MT-SS1439022 | 3.9mm Locking Bolt Self Tapping (SS) 22mm Length | 3.9 | 22 |
| MT-SS1439024 | 3.9mm Locking Bolt Self Tapping (SS) 24mm Length | 3.9 | 24 |
| MT-SS1439026 | 3.9mm Locking Bolt Self Tapping (SS) 26mm Length | 3.9 | 26 |
| MT-SS1439028 | 3.9mm Locking Bolt Self Tapping (SS) 28mm Length | 3.9 | 28 |
| MT-SS1439030 | 3.9mm Locking Bolt Self Tapping (SS) 30mm Length | 3.9 | 30 |
| MT-SS1439032 | 3.9mm Locking Bolt Self Tapping (SS) 32mm Length | 3.9 | 32 |
| MT-SS1439034 | 3.9mm Locking Bolt Self Tapping (SS) 34mm Length | 3.9 | 34 |
| MT-SS1439036 | 3.9mm Locking Bolt Self Tapping (SS) 36mm Length | 3.9 | 36 |
| MT-SS1439038 | 3.9mm Locking Bolt Self Tapping (SS) 38mm Length | 3.9 | 38 |
| MT-SS1439040 | 3.9mm Locking Bolt Self Tapping (SS) 40mm Length | 3.9 | 40 |
| MT-SS1439042 | 3.9mm Locking Bolt Self Tapping (SS) 42mm Length | 3.9 | 42 |
| MT-SS1439044 | 3.9mm Locking Bolt Self Tapping (SS) 44mm Length | 3.9 | 44 |
| MT-SS1439046 | 3.9mm Locking Bolt Self Tapping (SS) 46mm Length | 3.9 | 46 |
| MT-SS1439048 | 3.9mm Locking Bolt Self Tapping (SS) 48mm Length | 3.9 | 48 |
| MT-SS1439050 | 3.9mm Locking Bolt Self Tapping (SS) 50mm Length | 3.9 | 50 |
| MT-SS1439052 | 3.9mm Locking Bolt Self Tapping (SS) 52mm Length | 3.9 | 52 |
| MT-SS1439054 | 3.9mm Locking Bolt Self Tapping (SS) 54mm Length | 3.9 | 54 |
| MT-SS1439056 | 3.9mm Locking Bolt Self Tapping (SS) 56mm Length | 3.9 | 56 |
| MT-SS1439058 | 3.9mm Locking Bolt Self Tapping (SS) 58mm Length | 3.9 | 58 |
| MT-SS1439060 | 3.9mm Locking Bolt Self Tapping (SS) 60mm Length | 3.9 | 60 |
| MT-ES1300000 | Nail Cap for SFTN | - | - |
| MT-SS2649022 | 4.9mm Locking Bolt Self Tapping (SS) 22mm Length | 4.9 | 22 |
| MT-SS2649024 | 4.9mm Locking Bolt Self Tapping (SS) 24mm Length | 4.9 | 24 |
| MT-SS2649026 | 4.9mm Locking Bolt Self Tapping (SS) 26mm Length | 4.9 | 26 |
| MT-SS2649028 | 4.9mm Locking Bolt Self Tapping (SS) 28mm Length | 4.9 | 28 |
| MT-SS2649030 | 4.9mm Locking Bolt Self Tapping (SS) 30mm Length | 4.9 | 30 |
| MT-SS2649032 | 4.9mm Locking Bolt Self Tapping (SS) 32mm Length | 4.9 | 32 |
| MT-SS2649034 | 4.9mm Locking Bolt Self Tapping (SS) 34mm Length | 4.9 | 34 |
| MT-SS2649036 | 4.9mm Locking Bolt Self Tapping (SS) 36mm Length | 4.9 | 36 |
| MT-SS2649038 | 4.9mm Locking Bolt Self Tapping (SS) 38mm Length | 4.9 | 38 |
| MT-SS2649040 | 4.9mm Locking Bolt Self Tapping (SS) 40mm Length | 4.9 | 40 |
| MT-SS2649042 | 4.9mm Locking Bolt Self Tapping (SS) 42mm Length | 4.9 | 42 |
| MT-SS2649044 | 4.9mm Locking Bolt Self Tapping (SS) 44mm Length | 4.9 | 44 |
| MT-SS2649046 | 4.9mm Locking Bolt Self Tapping (SS) 46mm Length | 4.9 | 46 |
| MT-SS2649048 | 4.9mm Locking Bolt Self Tapping (SS) 48mm Length | 4.9 | 48 |
| MT-SS2649050 | 4.9mm Locking Bolt Self Tapping (SS) 50mm Length | 4.9 | 50 |
| MT-SS2649052 | 4.9mm Locking Bolt Self Tapping (SS) 52mm Length | 4.9 | 52 |
| MT-SS2649054 | 4.9mm Locking Bolt Self Tapping (SS) 54mm Length | 4.9 | 54 |
| MT-SS2649056 | 4.9mm Locking Bolt Self Tapping (SS) 56mm Length | 4.9 | 56 |
| MT-SS2649058 | 4.9mm Locking Bolt Self Tapping (SS) 58mm Length | 4.9 | 58 |
| MT-SS2649060 | 4.9mm Locking Bolt Self Tapping (SS) 60mm Length | 4.9 | 60 |
| MT-SS2649062 | 4.9mm Locking Bolt Self Tapping (SS) 62mm Length | 4.9 | 62 |
| MT-SS2649064 | 4.9mm Locking Bolt Self Tapping (SS) 64mm Length | 4.9 | 64 |
| MT-SS2649066 | 4.9mm Locking Bolt Self Tapping (SS) 66mm Length | 4.9 | 66 |
| MT-SS2649068 | 4.9mm Locking Bolt Self Tapping (SS) 68mm Length | 4.9 | 68 |
| MT-SS2649070 | 4.9mm Locking Bolt Self Tapping (SS) 70mm Length | 4.9 | 70 |
| MT-SS2649072 | 4.9mm Locking Bolt Self Tapping (SS) 72mm Length | 4.9 | 72 |
| MT-SS2649074 | 4.9mm Locking Bolt Self Tapping (SS) 74mm Length | 4.9 | 74 |
| MT-SS2649076 | 4.9mm Locking Bolt Self Tapping (SS) 76mm Length | 4.9 | 76 |
| MT-SS2649078 | 4.9mm Locking Bolt Self Tapping (SS) 78mm Length | 4.9 | 78 |
| MT-SS2649080 | 4.9mm Locking Bolt Self Tapping (SS) 80mm Length | 4.9 | 80 |
Clinical Data
Product IFU
Note: IFU will be displayed after MDR Certification
