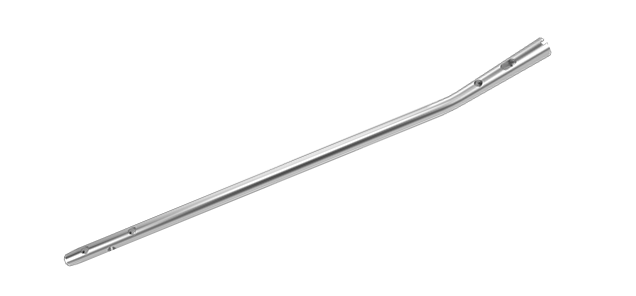

KET SS SHAFT TIBIA(SSTN)
Anatomical Implants
KET SS Shaft Tibia (SSTN) has the following features:
- One dynamic and two static transverse locking holes proximally.
- Two transverse locking holes and additional AP locking hole distally.
- Flat proximal bend for easier insertion, better fit.
- Beveled proximal end to prevent soft tissue irritation.
- Tip Locking option to cater to distal third fracture as well.
Size Chart
Availble in :
Diameters: 8mm, 9mm and 10mm
Lengths: 280mm to 380mm Diameters: 9mm, 10mm, 11mm and 12mm
Lengths: 340mm to 440mm
Indication
Tibia fractures with bony support (stable fracture in the middle third of the tibia, with or without locking):
- transverse fractures
- short oblique fractures
- pseudarthroses
Tibia fractures without bony support (unstable fractures in 60% of the tibial length):
- fractures near the metaphysis
- long torsional fractures
- segmental fractures
- comminuted fractures
- fractures with bone defects
Size Chart
| Part No. Titanium | Description | Size | |
|---|---|---|---|
| Hole /Dia. | Length | ||
| MT-NS2008280 | 8.0mm SS Shaft Tibia Nail Cannulated 280mm Length | 8.0 | 280 |
| MT-NS2009280 | 9.0mm SS Shaft Tibia Nail Cannulated 280mm Length | 9.0 | 280 |
| MT-NS2010280 | 10.0mm SS Shaft Tibia Nail Cannulated 280mm Length | 10.0 | 280 |
| MT-NS2008300 | 8.0mm SS Shaft Tibia Nail Cannulated 300mm Length | 8.0 | 300 |
| MT-NS2009300 | 9.0mm SS Shaft Tibia Nail Cannulated 300mm Length | 9.0 | 300 |
| MT-NS2010300 | 10.0mm SS Shaft Tibia Nail Cannulated 300mm Length | 10.0 | 300 |
| MT-NS2008320 | 8.0mm SS Shaft Tibia Nail Cannulated 320mm Length | 8.0 | 320 |
| MT-NS2009320 | 9.0mm SS Shaft Tibia Nail Cannulated 320mm Length | 9.0 | 320 |
| MT-NS2010320 | 10.0mm SS Shaft Tibia Nail Cannulated 320mm Length | 10.0 | 320 |
| MT-NS2008340 | 8.0mm SS Shaft Tibia Nail Cannulated 340mm Length | 8.0 | 340 |
| MT-NS2009340 | 9.0mm SS Shaft Tibia Nail Cannulated 340mm Length | 9.0 | 340 |
| MT-NS2010340 | 10.0mm SS Shaft Tibia Nail Cannulated 340mm Length | 10.0 | 340 |
| MT-NS2008360 | 8.0mm SS Shaft Tibia Nail Cannulated 360mm Length | 8.0 | 360 |
| MT-NS2009360 | 9.0mm SS Shaft Tibia Nail Cannulated 360mm Length | 9.0 | 360 |
| MT-NS2010360 | 10.0mm SS Shaft Tibia Nail Cannulated 360mm Length | 10.0 | 360 |
| MT-NS2008380 | 8.0mm SS Shaft Tibia Nail Cannulated 380mm Length | 8.0 | 380 |
| MT-NS2009380 | 9.0mm SS Shaft Tibia Nail Cannulated 380mm Length | 9.0 | 380 |
| MT-NS2010380 | 10.0mm SS Shaft Tibia Nail Cannulated 380mm Length | 10.0 | 380 |
| MT-SS1439022 | 3.9mm Locking Bolt Self Tapping (SS) 22mm Length | 3.9 | 22 |
| MT-SS1439024 | 3.9mm Locking Bolt Self Tapping (SS) 24mm Length | 3.9 | 24 |
| MT-SS1439026 | 3.9mm Locking Bolt Self Tapping (SS) 26mm Length | 3.9 | 26 |
| MT-SS1439028 | 3.9mm Locking Bolt Self Tapping (SS) 28mm Length | 3.9 | 28 |
| MT-SS1439030 | 3.9mm Locking Bolt Self Tapping (SS) 30mm Length | 3.9 | 30 |
| MT-SS1439032 | 3.9mm Locking Bolt Self Tapping (SS) 32mm Length | 3.9 | 32 |
| MT-SS1439034 | 3.9mm Locking Bolt Self Tapping (SS) 34mm Length | 3.9 | 34 |
| MT-SS1439036 | 3.9mm Locking Bolt Self Tapping (SS) 36mm Length | 3.9 | 36 |
| MT-SS1439038 | 3.9mm Locking Bolt Self Tapping (SS) 38mm Length | 3.9 | 38 |
| MT-SS1439040 | 3.9mm Locking Bolt Self Tapping (SS) 40mm Length | 3.9 | 40 |
| MT-SS1439042 | 3.9mm Locking Bolt Self Tapping (SS) 42mm Length | 3.9 | 42 |
| MT-SS1439044 | 3.9mm Locking Bolt Self Tapping (SS) 44mm Length | 3.9 | 44 |
| MT-SS1439046 | 3.9mm Locking Bolt Self Tapping (SS) 46mm Length | 3.9 | 46 |
| MT-SS1439048 | 3.9mm Locking Bolt Self Tapping (SS) 48mm Length | 3.9 | 48 |
| MT-SS1439050 | 3.9mm Locking Bolt Self Tapping (SS) 50mm Length | 3.9 | 50 |
| MT-SS1439052 | 3.9mm Locking Bolt Self Tapping (SS) 52mm Length | 3.9 | 52 |
| MT-SS1439054 | 3.9mm Locking Bolt Self Tapping (SS) 54mm Length | 3.9 | 54 |
| MT-SS1439056 | 3.9mm Locking Bolt Self Tapping (SS) 56mm Length | 3.9 | 56 |
| MT-SS1439058 | 3.9mm Locking Bolt Self Tapping (SS) 58mm Length | 3.9 | 58 |
| MT-SS1439060 | 3.9mm Locking Bolt Self Tapping (SS) 60mm Length | 3.9 | 60 |
| MT-ES1300000 | Nail Cap for SFTN | - | - |
| MT-SS2649022 | 4.9mm Locking Bolt Self Tapping (SS) 22mm Length | 4.9 | 22 |
| MT-SS2649024 | 4.9mm Locking Bolt Self Tapping (SS) 24mm Length | 4.9 | 24 |
| MT-SS2649026 | 4.9mm Locking Bolt Self Tapping (SS) 26mm Length | 4.9 | 26 |
| MT-SS2649028 | 4.9mm Locking Bolt Self Tapping (SS) 28mm Length | 4.9 | 28 |
| MT-SS2649030 | 4.9mm Locking Bolt Self Tapping (SS) 30mm Length | 4.9 | 30 |
| MT-SS2649032 | 4.9mm Locking Bolt Self Tapping (SS) 32mm Length | 4.9 | 32 |
| MT-SS2649034 | 4.9mm Locking Bolt Self Tapping (SS) 34mm Length | 4.9 | 34 |
| MT-SS2649036 | 4.9mm Locking Bolt Self Tapping (SS) 36mm Length | 4.9 | 36 |
| MT-SS2649038 | 4.9mm Locking Bolt Self Tapping (SS) 38mm Length | 4.9 | 38 |
| MT-SS2649040 | 4.9mm Locking Bolt Self Tapping (SS) 40mm Length | 4.9 | 40 |
| MT-SS2649042 | 4.9mm Locking Bolt Self Tapping (SS) 42mm Length | 4.9 | 42 |
| MT-SS2649044 | 4.9mm Locking Bolt Self Tapping (SS) 44mm Length | 4.9 | 44 |
| MT-SS2649046 | 4.9mm Locking Bolt Self Tapping (SS) 46mm Length | 4.9 | 46 |
| MT-SS2649048 | 4.9mm Locking Bolt Self Tapping (SS) 48mm Length | 4.9 | 48 |
| MT-SS2649050 | 4.9mm Locking Bolt Self Tapping (SS) 50mm Length | 4.9 | 50 |
| MT-SS2649052 | 4.9mm Locking Bolt Self Tapping (SS) 52mm Length | 4.9 | 52 |
| MT-SS2649054 | 4.9mm Locking Bolt Self Tapping (SS) 54mm Length | 4.9 | 54 |
| MT-SS2649056 | 4.9mm Locking Bolt Self Tapping (SS) 56mm Length | 4.9 | 56 |
| MT-SS2649058 | 4.9mm Locking Bolt Self Tapping (SS) 58mm Length | 4.9 | 58 |
| MT-SS2649060 | 4.9mm Locking Bolt Self Tapping (SS) 60mm Length | 4.9 | 60 |
| MT-SS2649062 | 4.9mm Locking Bolt Self Tapping (SS) 62mm Length | 4.9 | 62 |
| MT-SS2649064 | 4.9mm Locking Bolt Self Tapping (SS) 64mm Length | 4.9 | 64 |
| MT-SS2649066 | 4.9mm Locking Bolt Self Tapping (SS) 66mm Length | 4.9 | 66 |
| MT-SS2649068 | 4.9mm Locking Bolt Self Tapping (SS) 68mm Length | 4.9 | 68 |
| MT-SS2649070 | 4.9mm Locking Bolt Self Tapping (SS) 70mm Length | 4.9 | 70 |
| MT-SS2649072 | 4.9mm Locking Bolt Self Tapping (SS) 72mm Length | 4.9 | 72 |
| MT-SS2649074 | 4.9mm Locking Bolt Self Tapping (SS) 74mm Length | 4.9 | 74 |
| MT-SS2649076 | 4.9mm Locking Bolt Self Tapping (SS) 76mm Length | 4.9 | 76 |
| MT-SS2649078 | 4.9mm Locking Bolt Self Tapping (SS) 78mm Length | 4.9 | 78 |
| MT-SS2649080 | 4.9mm Locking Bolt Self Tapping (SS) 80mm Length | 4.9 | 80 |
Clinical Data
Product IFU
Note: IFU will be displayed after MDR Certification
