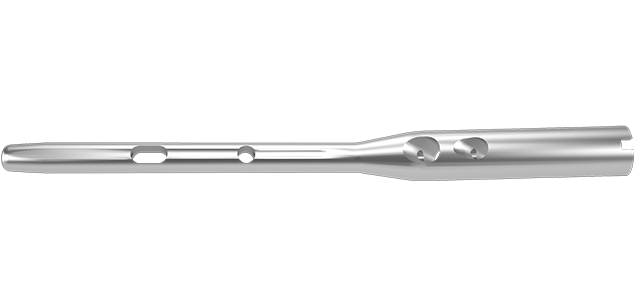

KET SS TROCHANTERIC FEMORAL AND PROXIMAL FIXATION FEMORAL NAIL
Anatomical Implants
- One dynamic and two static transverse locking holes proximally
- Two transverse locking holes and additional AP locking hole distally
- Anatomically correct 11° bend1 and longer, flat proximal bend for easier insertion, better fit
- Beveled proximal end to prevent soft tissue irritation
Size Chart
Short PFN(TFN)
Available in both 130 and 135 degrees:
Diameters: 9mm, 10mm, 11mm and 12mm.
Lengths: 180mm and 250mm
Long PFN
Available in both 130 and 135 degrees:
Diameters: 9mm, 10mm, 11mm and 12mm.
Lengths: 300mm to 440mm
Indication
Short PFN (TFN):
The short femoral nail is used for:
- small statures
- pertrochanteric fractures
- Intertrochanteric fractures
- high subtrochanteric fractures, etc.
Contraindications:
- Low subtrochanteric fractures
- Femoral shaft fractures
- Isolated or combined medial femoral neck fractures
Long PFN:
- Low and extended subtrochanteric fractures
- Ipsilateral trochanteric fractures
- Combination of fractures (trochanteric area/shaft)
- Pathological fractures
Contraindications:
- Isolated or combined medial femoral neck fractures
Size Chart
| Part No. Titanium | Description | Size | |
|---|---|---|---|
| Hole /Dia. | Length | ||
| MT-NS1509180 | 9.0mm SS Trochanteric Femoral Nail 130° 180mm Length | 9.0 | 180 |
| MT-NS1510180 | 10.0mm SS Trochanteric Femoral Nail 130° 180mm Length | 10.0 | 180 |
| MT-NS1511180 | 11.0mm SS Trochanteric Femoral Nail 130° 180mm Length | 11.0 | 180 |
| MT-NS1512180 | 12.0mm SS Trochanteric Femoral Nail 130° 180mm Length | 12.0 | 180 |
| MT-NS2209180 | 9.0mm SS Trochanteric Femoral Nail 135° 180mm Length | 9.0 | 180 |
| MT-NS2210180 | 10.0mm SS Trochanteric Femoral Nail 135° 180mm Length | 10.0 | 180 |
| MT-NS2211180 | 11.0mm SS Trochanteric Femoral Nail 135° 180mm Length | 11.0 | 180 |
| MT-NS2212180 | 12.0mm SS Trochanteric Femoral Nail 135° 180mm Length | 12.0 | 180 |
| MT-NS1609250 | 9.0mm SS Proximal Fixation Femoral Nail 135° 250mm Length | 9.0 | 250 |
| MT-NS1610250 | 10.0mm SS Proximal Fixation Femoral Nail 135° 250mm Length | 10.0 | 250 |
| MT-NS1611250 | 11.0mm SS Proximal Fixation Femoral Nail 135° 250mm Length | 11.0 | 250 |
| MT-NS1612250 | 12.0mm SS Proximal Fixation Femoral Nail 135° 250mm Length | 12.0 | 250 |
| MT-NS2309250 | 9.0mm SS Proximal Fixation Femoral Nail 130° 250mm Length | 9.0 | 250 |
| MT-NS2310250 | 10.0mm SS Proximal Fixation Femoral Nail 130° 250mm Length | 10.0 | 250 |
| MT-NS2311250 | 11.0mm SS Proximal Fixation Femoral Nail 130° 250mm Length | 11.0 | 250 |
| MT-NS2312250 | 12.0mm SS Proximal Fixation Femoral Nail 130° 250mm Length | 12.0 | 250 |
| MT-NS1609300L | 9.0mm SS Proximal Fixation Femoral Long Nail Left 135° 300mm Length | 9.0 | 300 |
| MT-NS1610300L | 10.0mm SS Proximal Fixation Femoral Long Nail Left 135° 300mm Length | 10.0 | 300 |
| MT-NS1611300L | 11.0mm SS Proximal Fixation Femoral Long Nail Left 135° 300mm Length | 11.0 | 300 |
| MT-NS1612300L | 12.0mm SS Proximal Fixation Femoral Long Nail Left 135° 300mm Length | 12.0 | 300 |
| MT-NS1609320L | 9.0mm SS Proximal Fixation Femoral Long Nail Left 135° 320mm Length | 9.0 | 320 |
| MT-NS1610320L | 10.0mm SS Proximal Fixation Femoral Long Nail Left 135° 320mm Length | 10.0 | 320 |
| MT-NS1611320L | 11.0mm SS Proximal Fixation Femoral Long Nail Left 135° 320mm Length | 11.0 | 320 |
| MT-NS1612320L | 12.0mm SS Proximal Fixation Femoral Long Nail Left 135° 320mm Length | 12.0 | 320 |
| MT-NS1609340L | 9.0mm SS Proximal Fixation Femoral Long Nail Left 135° 340mm Length | 9.0 | 340 |
| MT-NS1610340L | 10.0mm SS Proximal Fixation Femoral Long Nail Left 135° 340mm Length | 10.0 | 340 |
| MT-NS1611340L | 11.0mm SS Proximal Fixation Femoral Long Nail Left 135° 340mm Length | 11.0 | 340 |
| MT-NS1612340L | 12.0mm SS Proximal Fixation Femoral Long Nail Left 135° 340mm Length | 12.0 | 340 |
| MT-NS1609360L | 9.0mm SS Proximal Fixation Femoral Long Nail Left 135° 360mm Length | 9.0 | 360 |
| MT-NS1610360L | 10.0mm SS Proximal Fixation Femoral Long Nail Left 135° 360mm Length | 10.0 | 360 |
| MT-NS1611360L | 11.0mm SS Proximal Fixation Femoral Long Nail Left 135° 360mm Length | 11.0 | 360 |
| MT-NS1612360L | 12.0mm SS Proximal Fixation Femoral Long Nail Left 135° 360mm Length | 12.0 | 360 |
| MT-NS1609380L | 9.0mm SS Proximal Fixation Femoral Long Nail Left 135° 380mm Length | 9.0 | 380 |
| MT-NS1610380L | 10.0mm SS Proximal Fixation Femoral Long Nail Left 135° 380mm Length | 10.0 | 380 |
| MT-NS1611380L | 11.0mm SS Proximal Fixation Femoral Long Nail Left 135° 380mm Length | 11.0 | 380 |
| MT-NS1612380L | 12.0mm SS Proximal Fixation Femoral Long Nail Left 135° 380mm Length | 12.0 | 380 |
| MT-NS1609400L | 9.0mm SS Proximal Fixation Femoral Long Nail Left 135° 400mm Length | 9.0 | 400 |
| MT-NS1610400L | 10.0mm SS Proximal Fixation Femoral Long Nail Left 135° 400mm Length | 10.0 | 400 |
| MT-NS1611400L | 11.0mm SS Proximal Fixation Femoral Long Nail Left 135° 400mm Length | 11.0 | 400 |
| MT-NS1612400L | 12.0mm SS Proximal Fixation Femoral Long Nail Left 135° 400mm Length | 12.0 | 400 |
| MT-NS1609420L | 9.0mm SS Proximal Fixation Femoral Long Nail Left 135° 420mm Length | 9.0 | 420 |
| MT-NS1610420L | 10.0mm SS Proximal Fixation Femoral Long Nail Left 135° 420mm Length | 10.0 | 420 |
| MT-NS1611420L | 11.0mm SS Proximal Fixation Femoral Long Nail Left 135° 420mm Length | 11.0 | 420 |
| MT-NS1612420L | 12.0mm SS Proximal Fixation Femoral Long Nail Left 135° 420mm Length | 12.0 | 420 |
| MT-NS1609440L | 9.0mm SS Proximal Fixation Femoral Long Nail Left 135° 440mm Length | 9.0 | 440 |
| MT-NS1610440L | 10.0mm SS Proximal Fixation Femoral Long Nail Left 135° 440mm Length | 10.0 | 440 |
| MT-NS1611440L | 11.0mm SS Proximal Fixation Femoral Long Nail Left 135° 440mm Length | 11.0 | 440 |
| MT-NS1612440L | 12.0mm SS Proximal Fixation Femoral Long Nail Left 135° 440mm Length | 12.0 | 440 |
| MT-NS1609300R | 9.0mm SS Proximal Fixation Femoral Long Nail Right 135° 300mm Length | 9.0 | 300 |
| MT-NS1610300R | 10.0mm SS Proximal Fixation Femoral Long Nail Right 135° 300mm Length | 10.0 | 300 |
| MT-NS1611300R | 11.0mm SS Proximal Fixation Femoral Long Nail Right 135° 300mm Length | 11.0 | 300 |
| MT-NS1612300R | 12.0mm SS Proximal Fixation Femoral Long Nail Right 135° 300mm Length | 12.0 | 300 |
| MT-NS1609320R | 9.0mm SS Proximal Fixation Femoral Long Nail Right 135° 320mm Length | 9.0 | 320 |
| MT-NS1610320R | 10.0mm SS Proximal Fixation Femoral Long Nail Right 135° 320mm Length | 10.0 | 320 |
| MT-NS1611320R | 11.0mm SS Proximal Fixation Femoral Long Nail Right 135° 320mm Length | 11.0 | 320 |
| MT-NS1612320R | 12.0mm SS Proximal Fixation Femoral Long Nail Right 135° 320mm Length | 12.0 | 320 |
| MT-NS1609340R | 9.0mm SS Proximal Fixation Femoral Long Nail Right 135° 340mm Length | 9.0 | 340 |
| MT-NS1610340R | 10.0mm SS Proximal Fixation Femoral Long Nail Right 135° 340mm Length | 10.0 | 340 |
| MT-NS1611340R | 11.0mm SS Proximal Fixation Femoral Long Nail Right 135° 340mm Length | 11.0 | 340 |
| MT-NS1612340R | 12.0mm SS Proximal Fixation Femoral Long Nail Right 135° 340mm Length | 12.0 | 340 |
| MT-NS1609360R | 9.0mm SS Proximal Fixation Femoral Long Nail Right 135° 360mm Length | 9.0 | 360 |
| MT-NS1610360R | 10.0mm SS Proximal Fixation Femoral Long Nail Right 135° 360mm Length | 10.0 | 360 |
| MT-NS1611360R | 11.0mm SS Proximal Fixation Femoral Long Nail Right 135° 360mm Length | 11.0 | 360 |
| MT-NS1612360R | 12.0mm SS Proximal Fixation Femoral Long Nail Right 135° 360mm Length | 12.0 | 360 |
| MT-NS1609380R | 9.0mm SS Proximal Fixation Femoral Long Nail Right 135° 380mm Length | 9.0 | 380 |
| MT-NS1610380R | 10.0mm SS Proximal Fixation Femoral Long Nail Right 135° 380mm Length | 10.0 | 380 |
| MT-NS1611380R | 11.0mm SS Proximal Fixation Femoral Long Nail Right 135° 380mm Length | 11.0 | 380 |
| MT-NS1612380R | 12.0mm SS Proximal Fixation Femoral Long Nail Right 135° 380mm Length | 12.0 | 380 |
| MT-NS1609400R | 9.0mm SS Proximal Fixation Femoral Long Nail Right 135° 400mm Length | 9.0 | 400 |
| MT-NS1610400R | 10.0mm SS Proximal Fixation Femoral Long Nail Right 135° 400mm Length | 10.0 | 400 |
| MT-NS1611400R | 11.0mm SS Proximal Fixation Femoral Long Nail Right 135° 400mm Length | 11.0 | 400 |
| MT-NS1612400R | 12.0mm SS Proximal Fixation Femoral Long Nail Right 135° 400mm Length | 12.0 | 400 |
| MT-NS1609420R | 9.0mm SS Proximal Fixation Femoral Long Nail Right 135° 420mm Length | 9.0 | 420 |
| MT-NS1610420R | 10.0mm SS Proximal Fixation Femoral Long Nail Right 135° 420mm Length | 10.0 | 420 |
| MT-NS1611420R | 11.0mm SS Proximal Fixation Femoral Long Nail Right 135° 420mm Length | 11.0 | 420 |
| MT-NS1612420R | 12.0mm SS Proximal Fixation Femoral Long Nail Right 135° 420mm Length | 12.0 | 420 |
| MT-NS1609440R | 9.0mm SS Proximal Fixation Femoral Long Nail Right 135° 440mm Length | 9.0 | 440 |
| MT-NS1610440R | 10.0mm SS Proximal Fixation Femoral Long Nail Right 135° 440mm Length | 10.0 | 440 |
| MT-NS1611440R | 11.0mm SS Proximal Fixation Femoral Long Nail Right 135° 440mm Length | 11.0 | 440 |
| MT-NS1612440R | 12.0mm SS Proximal Fixation Femoral Long Nail Right 135° 440mm Length | 12.0 | 440 |
| MT-SS2649022 | 4.9mm Locking Bolt Self Tapping (SS) 22mm Length | 4.9 | 22 |
| MT-SS2649024 | 4.9mm Locking Bolt Self Tapping (SS) 24mm Length | 4.9 | 24 |
| MT-SS2649026 | 4.9mm Locking Bolt Self Tapping (SS) 26mm Length | 4.9 | 26 |
| MT-SS2649028 | 4.9mm Locking Bolt Self Tapping (SS) 28mm Length | 4.9 | 28 |
| MT-SS2649030 | 4.9mm Locking Bolt Self Tapping (SS) 30mm Length | 4.9 | 30 |
| MT-SS2649032 | 4.9mm Locking Bolt Self Tapping (SS) 32mm Length | 4.9 | 32 |
| MT-SS2649034 | 4.9mm Locking Bolt Self Tapping (SS) 34mm Length | 4.9 | 34 |
| MT-SS2649036 | 4.9mm Locking Bolt Self Tapping (SS) 36mm Length | 4.9 | 36 |
| MT-SS2649038 | 4.9mm Locking Bolt Self Tapping (SS) 38mm Length | 4.9 | 38 |
| MT-SS2649040 | 4.9mm Locking Bolt Self Tapping (SS) 40mm Length | 4.9 | 40 |
| MT-SS2649042 | 4.9mm Locking Bolt Self Tapping (SS) 42mm Length | 4.9 | 42 |
| MT-SS2649044 | 4.9mm Locking Bolt Self Tapping (SS) 44mm Length | 4.9 | 44 |
| MT-SS2649046 | 4.9mm Locking Bolt Self Tapping (SS) 46mm Length | 4.9 | 46 |
| MT-SS2649048 | 4.9mm Locking Bolt Self Tapping (SS) 48mm Length | 4.9 | 48 |
| MT-SS2649050 | 4.9mm Locking Bolt Self Tapping (SS) 50mm Length | 4.9 | 50 |
| MT-SS2649052 | 4.9mm Locking Bolt Self Tapping (SS) 52mm Length | 4.9 | 52 |
| MT-SS2649054 | 4.9mm Locking Bolt Self Tapping (SS) 54mm Length | 4.9 | 54 |
| MT-SS2649056 | 4.9mm Locking Bolt Self Tapping (SS) 56mm Length | 4.9 | 56 |
| MT-SS2649058 | 4.9mm Locking Bolt Self Tapping (SS) 58mm Length | 4.9 | 58 |
| MT-SS2649060 | 4.9mm Locking Bolt Self Tapping (SS) 60mm Length | 4.9 | 60 |
| MT-SS2649062 | 4.9mm Locking Bolt Self Tapping (SS) 62mm Length | 4.9 | 62 |
| MT-SS2649064 | 4.9mm Locking Bolt Self Tapping (SS) 64mm Length | 4.9 | 64 |
| MT-SS2649066 | 4.9mm Locking Bolt Self Tapping (SS) 66mm Length | 4.9 | 66 |
| MT-SS2649068 | 4.9mm Locking Bolt Self Tapping (SS) 68mm Length | 4.9 | 68 |
| MT-SS2649070 | 4.9mm Locking Bolt Self Tapping (SS) 70mm Length | 4.9 | 70 |
| MT-SS2649072 | 4.9mm Locking Bolt Self Tapping (SS) 72mm Length | 4.9 | 72 |
| MT-SS2649074 | 4.9mm Locking Bolt Self Tapping (SS) 74mm Length | 4.9 | 74 |
| MT-SS2649076 | 4.9mm Locking Bolt Self Tapping (SS) 76mm Length | 4.9 | 76 |
| MT-SS2649078 | 4.9mm Locking Bolt Self Tapping (SS) 78mm Length | 4.9 | 78 |
| MT-SS2649080 | 4.9mm Locking Bolt Self Tapping (SS) 80mm Length | 4.9 | 80 |
| MT-SS8064050 | 6.4mm Cannulated Bolt Self Tapping (SS) 50mm Length | 6.4 | 50 |
| MT-SS8064055 | 6.4mm Cannulated Bolt Self Tapping (SS) 55mm Length | 6.4 | 55 |
| MT-SS8064060 | 6.4mm Cannulated Bolt Self Tapping (SS) 60mm Length | 6.4 | 60 |
| MT-SS8064065 | 6.4mm Cannulated Bolt Self Tapping (SS) 65mm Length | 6.4 | 65 |
| MT-SS8064070 | 6.4mm Cannulated Bolt Self Tapping (SS) 70mm Length | 6.4 | 70 |
| MT-SS8064075 | 6.4mm Cannulated Bolt Self Tapping (SS) 75mm Length | 6.4 | 75 |
| MT-SS8064080 | 6.4mm Cannulated Bolt Self Tapping (SS) 80mm Length | 6.4 | 80 |
| MT-SS8064085 | 6.4mm Cannulated Bolt Self Tapping (SS) 85mm Length | 6.4 | 85 |
| MT-SS8064090 | 6.4mm Cannulated Bolt Self Tapping (SS) 90mm Length | 6.4 | 90 |
| MT-SS8064095 | 6.4mm Cannulated Bolt Self Tapping (SS) 95mm Length | 6.4 | 95 |
| MT-SS8064100 | 6.4mm Cannulated Bolt Self Tapping (SS) 100mm Length | 6.4 | 100 |
| MT-SS8064105 | 6.4mm Cannulated Bolt Self Tapping (SS) 105mm Length | 6.4 | 105 |
| MT-SS8064110 | 6.4mm Cannulated Bolt Self Tapping (SS) 110mm Length | 6.4 | 110 |
| MT-SS8064115 | 6.4mm Cannulated Bolt Self Tapping (SS) 115mm Length | 6.4 | 115 |
| MT-SS8180050 | 8.0mm Cannulated Bolt Self Tapping (SS) 50mm Length | 8.0 | 50 |
| MT-SS8180055 | 8.0mm Cannulated Bolt Self Tapping (SS) 55mm Length | 8.0 | 55 |
| MT-SS8180060 | 8.0mm Cannulated Bolt Self Tapping (SS) 60mm Length | 8.0 | 60 |
| MT-SS8180065 | 8.0mm Cannulated Bolt Self Tapping (SS) 65mm Length | 8.0 | 65 |
| MT-SS8180070 | 8.0mm Cannulated Bolt Self Tapping (SS) 70mm Length | 8.0 | 70 |
| MT-SS8180075 | 8.0mm Cannulated Bolt Self Tapping (SS) 75mm Length | 8.0 | 75 |
| MT-SS8180080 | 8.0mm Cannulated Bolt Self Tapping (SS) 80mm Length | 8.0 | 80 |
| MT-SS8180085 | 8.0mm Cannulated Bolt Self Tapping (SS) 85mm Length | 8.0 | 85 |
| MT-SS8180090 | 8.0mm Cannulated Bolt Self Tapping (SS) 90mm Length | 8.0 | 90 |
| MT-SS8180095 | 8.0mm Cannulated Bolt Self Tapping (SS) 95mm Length | 8.0 | 95 |
| MT-SS8180100 | 8.0mm Cannulated Bolt Self Tapping (SS) 100mm Length | 8.0 | 100 |
| MT-SS8180105 | 8.0mm Cannulated Bolt Self Tapping (SS) 105mm Length | 8.0 | 105 |
| MT-SS8180110 | 8.0mm Cannulated Bolt Self Tapping (SS) 110mm Length | 8.0 | 110 |
| MT-SS8180115 | 8.0mm Cannulated Bolt Self Tapping (SS) 115mm Length | 8.0 | 115 |
| MT-SS7900000 | Set Screw for SPFN Nail (SS) | - | - |
| MT-ES0900000 | Nail Cap for PFN/TFN Short | - | - |
| MT-ES1000000 | Nail Cap for PFN/TFN Long | - | - |
Clinical Data
Product IFU
Note: IFU will be displayed after MDR Certification
