ELASTIC TITANIUM NAIL
The Elastic Titanium Nail system was developed for elastic stable intramedullary nailing.
The optimal material was chosen for appropriate mechanical stability combined with adequate elasticity.
The tip of the nail allows easy insertion and sliding. It is available in titanium alloy (TI-6AI-4V).

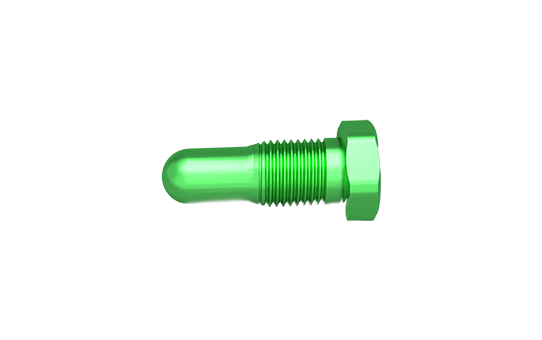

Ti alloy implants combine excellent mechanical stability with elastic properties. Sharp self-cutting thread in nail cap for proper fixation in bone.
The diameter of the individual nail should be 30%-40% of the narrowest medullary canal.
Indication
ETN is used for the osteosynthesis of clavicle, femoral, tibia, radius ulna and humerus fractures.
Size Chart
Elastic Titanium Nails are available in six diameters: 1.5mm, 2.0mm, 2.5mm, 3.00mm, 3.5mm and 4.0mm. The 1.5mm diameter nail is 300mm long. The 2.0mm through 4.0mm diameter nails are 440mm long with easy insertion and sliding tip. Two sizes of nail caps cover all nail diameters. Nail cap is designed to prevent soft tissue irritation.
Size Chart
| Part No. Titanium | Part No. SS | Description | Size | |
|---|---|---|---|---|
| Hole /Dia. | Length | |||
| MT-NT0515300 | Elastic Titanium Nail | Ø1.5 | 300 | |
| MT-NT0520440 | Elastic Titanium Nail | Ø2.0 | 440 | |
| MT-NT0525440 | Elastic Titanium Nail | Ø2.5 | 440 | |
| MT-NT0530440 | Elastic Titanium Nail | Ø3.0 | 440 | |
| MT-NT0535440 | Elastic Titanium Nail | Ø3.5 | 440 | |
| MT-NT0540440 | Elastic Titanium Nail | Ø4.0 | 440 | |
| MT-ET0615000 | Nail Cap for Elastic Titanium Nail Ø1.5 to Ø2.5 | - | - | |
| MT-ET0630000 | Nail Cap for Elastic Titanium Nail Ø1.5 to Ø2.5 | - | - | |
Clinical Data
Product IFU
Note: IFU will be displayed after MDR Certification
