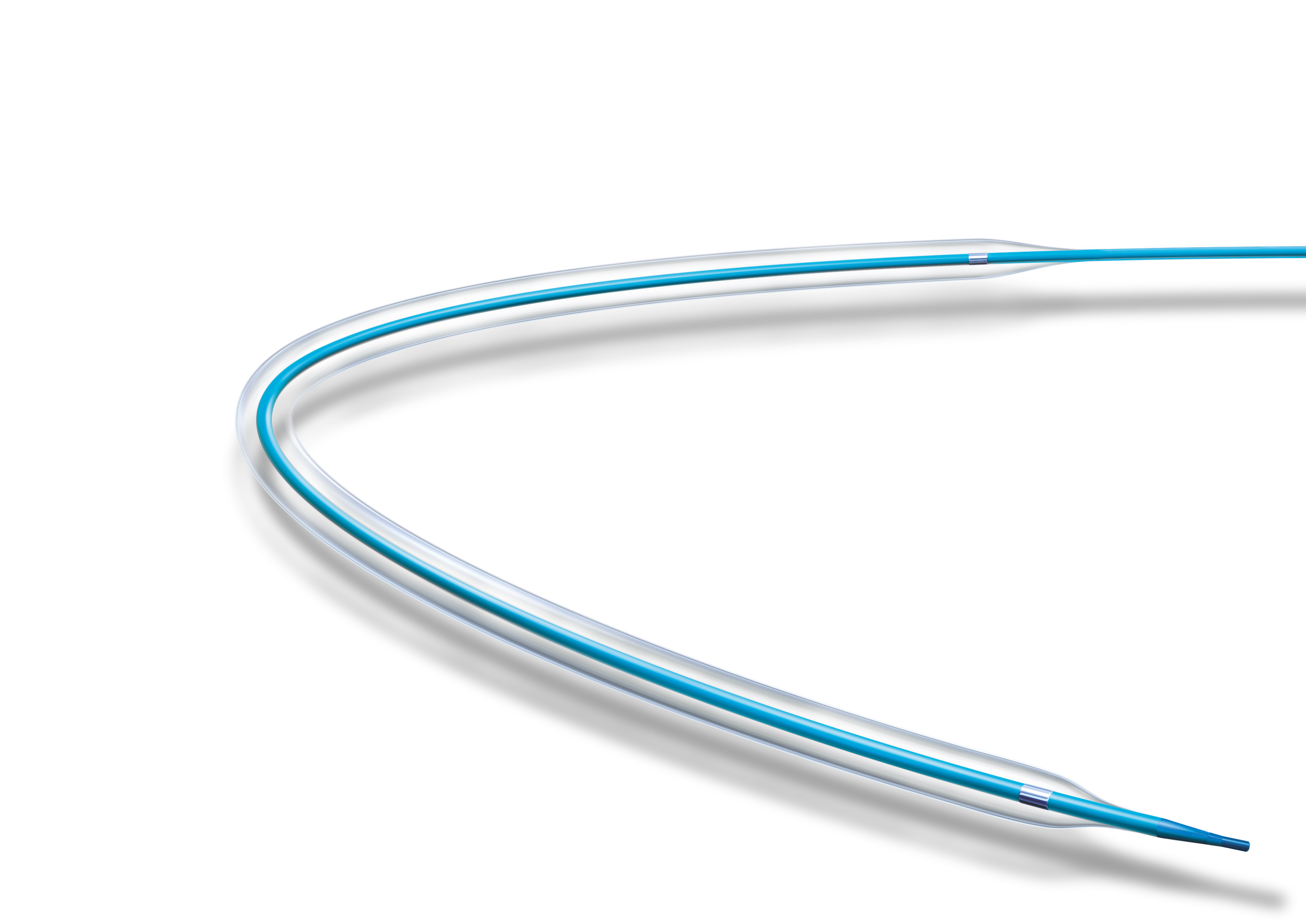

MOZEC PTA 14
Mozec™ PTA 0.014" is intended to be used for the treatment of obstructive peripheral disease and for Pre & post dilatation in peripheral vasculature and carotid arteries, in Patients undergoing endovascular procedure requiring vessel dilatation.
Ultra-low 0.016” distal tip entry aides crossability through tight lesions
BioGlide™ hydrophilic coating on balloon and shaft provides enhanced deliverability
Superior force transmission with seamless single tube transition provides FeatherLite™ Pushability
FeatherGlide™ Trackability with low tracking force
Fatigue Resistance balloon material provides better Durability
- TREAT DISTAL / PEDAL-ARCH VESSEL WITH 1.5 MM BALLOONS
- TREAT LONG DIFFUSED BTK LESIONS WITH 250 MM LONG BALLOON
- EXPERIENCE ENHANCED NAVIGATION
Benefits
Assured Trackability + Superior Deliverability + Responsive Pushability = Enhanced Navigation
Longer length balloons (upto 250 mm) to reduce need for multiple balloon dilatation
2/3 fold good rewrap profile helpful during multiple dilatation
Faster Inflation / Deflation Time (*<10 sec) reduces radiation exposure time
Semi Compliant PEBA balloon material provides better balloon flexibility
Indication
The Mozec™ PTA Balloon Dilatation Catheter (0.014") is indicated for Percutaneous Transluminal Angioplasty (PTA) in patients with obstructive disease of carotid, iliac, femoral, popliteal, infra-popliteal and renal arteries with reference diameter equal or larger than selected balloon sizes. It is also indicated for post-dilation of balloon-expandable and self-expanding stents in the peripheral vasculature and carotid arteries.
Product Specifications
| Catheter System | Over-The-Wire (OTW) |
| Balloon Material | PEBA |
| Catheter Usable Length | 120 & 150 |
| Max Guidewire Compatibility | 0.014" |
| Min Sheath Comptibility | 4F / 5F (Refer box/IFU for details) |
| Shaft/Balloon Coating | Biocompatible Hydrophilic Lubricious coating on Balloon + Distal Shaft |
| Distal Puchase | 5.0 ± 1 mm |
| Balloon RO Markers | 2 Platinum-Iridium |
| Nominal Pressure (NP) | 6 / 7 ATM |
| Rated Burst Pressure (RBP) | 12 - 16 ATM |
Size Chart
MOZEC PTA Guidewire Comptibility : 0.014 Usable Shaft Length 120 CM
| Diameter / Length | 30 mm | 40 mm | 60 mm | 80 mm | 120 mm | 150 mm | 200 mm | 250 mm |
|---|---|---|---|---|---|---|---|---|
| 1.5 mm | MO14015030A | MO14015040A | MO14015060A | MO14015080A | - | - | - | - |
| 2 mm | MO14020030A | MO14020040A | MO14020060A | MO14020080A | MO14020120A | MO14020150A | MO14020200A | MO14020250A |
| 2.5 mm | MO14025030A | MO14025040A | MO14025060A | MO14025080A | MO14025120A | MO14025150A | MO14025200A | MO14025250A |
| 3 mm | MO14030030A | MO14030040A | MO14030060A | MO14030080A | MO14030120A | MO14030150A | MO14030200A | MO14030250A |
| 3.5 mm | MO14035030A | MO14035040A | MO14035060A | MO14035080A | MO14035120A | MO14035150A | MO14035200A | MO14035250A |
| 4 mm | MO14040030A | MO14040040A | MO14040060A | MO14040080A | MO14040120A | MO14040150A | MO14040200A | MO14040250A |
| 5 mm | MO14050030A | MO14050040A | MO14050060A | MO14050080A | MO14050120A | MO14050150A | MO14050200A | MO14050250A |
MOZEC PTA Guidewire Comptibility : 0.014 Usable Shaft Length 150 CM
| Diameter / Length | 30 mm | 40 mm | 60 mm | 80 mm | 120 mm | 150 mm | 200 mm | 250 mm |
|---|---|---|---|---|---|---|---|---|
| 1.5 mm | MO14015030B | MO14015040B | MO14015060B | MO14015080B | - | - | - | - |
| 2 mm | MO14020030B | MO14020040B | MO14020060B | MO14020080B | MO14020120B | MO14020150B | MO14020200B | MO14020250B |
| 2.5 mm | MO14025030B | MO14025040B | MO14025060B | MO14025080B | MO14025120B | MO14025150B | MO14025200B | MO14025250B |
| 3 mm | MO14030030B | MO14030040B | MO14030060B | MO14030080B | MO14030120B | MO14030150B | MO14030200B | MO14030250B |
| 3.5 mm | MO14035030B | MO14035040B | MO14035060B | MO14035080B | MO14035120B | MO14035150B | MO14035200B | MO14035250B |
| 4 mm | MO14040030B | MO14040040B | MO14040060B | MO14040080B | MO14040120B | MO14040150B | MO14040200B | MO14040250B |
| 5 mm | MO14050030B | MO14050040B | MO14050060B | MO14050080B | MO14050120B | MO14050150B | MO14050200B | MO14050250B |
Clinical Data
Product IFU
Note: IFU will be displayed after MDR Certification
